GLF ECO 90
Unitised Curtain Wall System
GLF ECO 90 is a unitised curtain wall system available from Gunn Lennon Fabrications, a leading Façade Specialist. The GLF ECO 90 combines design excellence with the latest in façade technology to offer a new standard in environmentally-friendly curtain walling, with all the benefits of pre-fabricated off-site construction. Extruded by Cortizo in Spain from a minimum of 80% recycled aluminium and shipped to GLF by sea, GLF ECO 90 contributes to the highest possible LEED score.
GLF ECO 90 uses a combination of extruded gaskets and thermal isolators to achieve higher than average thermal performance for unitised curtain walling. With the correct specification of high performance double glazing, GLF ECO 90 will achieve nZEB levels of thermal efficiency. GLF ECO 90 is fully-tested to CWCT Sequence B and EN standards and meets all relevant International Standards.
Features
ECO90 has been engineered to achieve large-format units up to 3 metres wide by storey height
Unitised façade with the flush appearance of structural glazing
Extruded aluminium elements available in a wide range of polyester powder-coated and anodised finishes
U-values as low as 1.3 Watts per m² degree K achievable with high performance double glazing

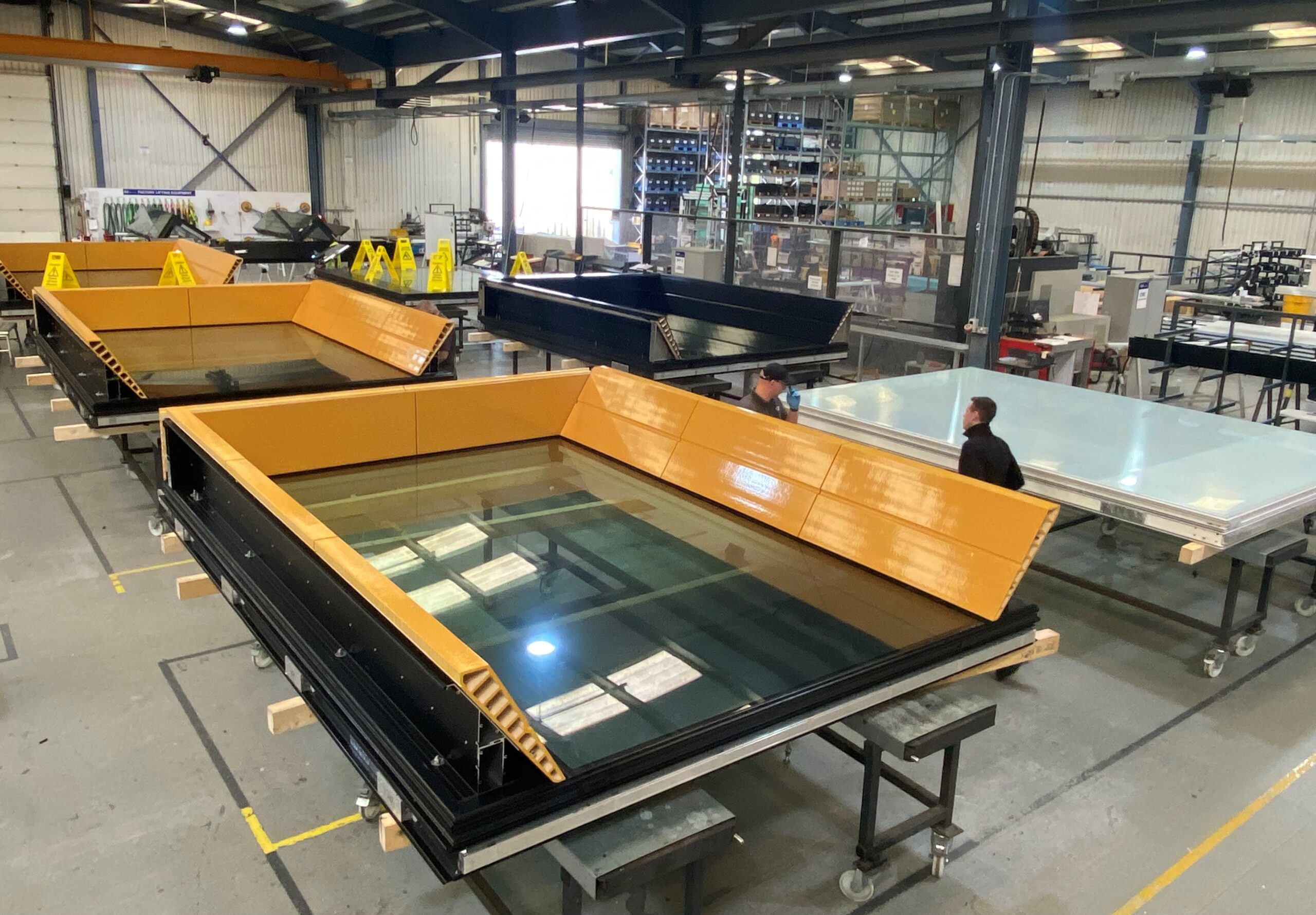

Factory-fabrication in controlled conditions ensures high-quality assembly and finish
Unitised construction reduces installation times and reduces or eliminates the need for external access
Large module sizes in excess of 3000 mm width x 4000 mm height available
Can incorporate additional features such as fins, stone, brick, terracotta and lighting
Ideal for multi-storey construction on restricted construction sites
Cost-effective solution from a leading architectural façade specialist
Performance
Air Permeability - Class 4 (600 Pa)
Watertightness - 600 Pa
Windload Serviceability - 2400 Pa
Impact Resistance - Category B (Class 5)
Thermal Insulation - Up to Ucw 1.3 W/m²K
GLF supplies specialist design, fabrication and installation services to the construction industry. It designs, manufactures
and installs high specification metal and glass façades in Ireland
and the UK. GLF acts in the role of a Specialist Contractor and competes in the premium façade market. It provides curtain walling, architectural cladding, roof glazing, commercial windows and doors to such buildings as commercial offices,
universities and pharmaceutical / healthcare facilities.
